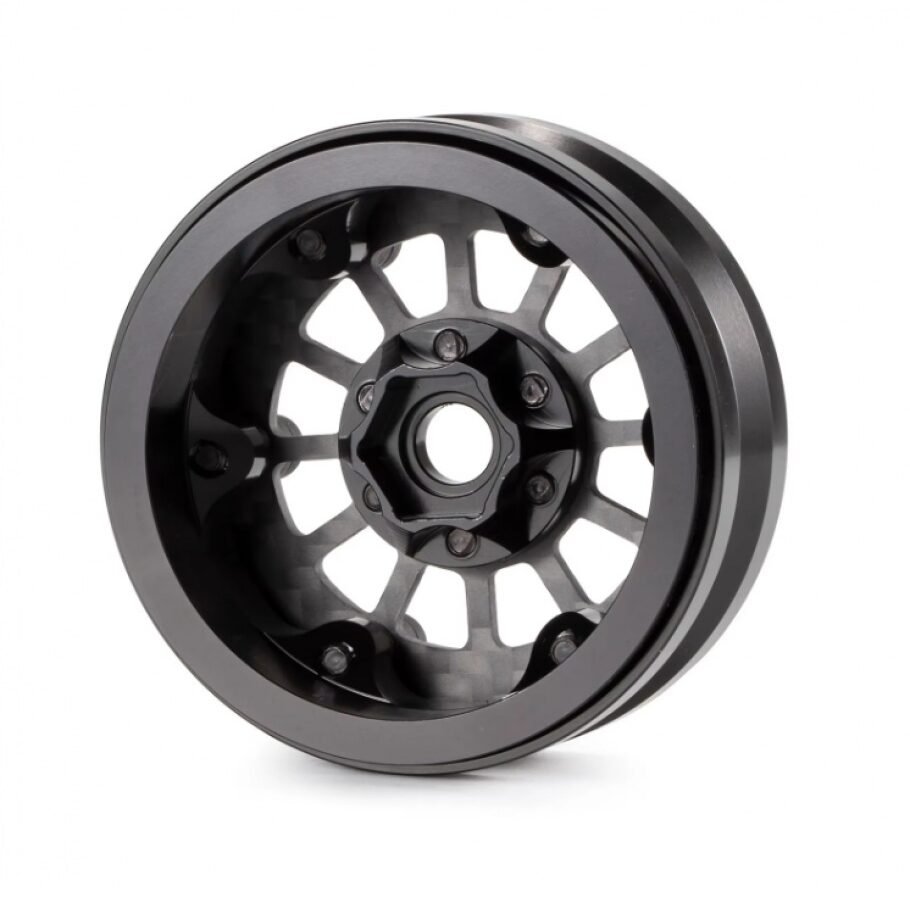

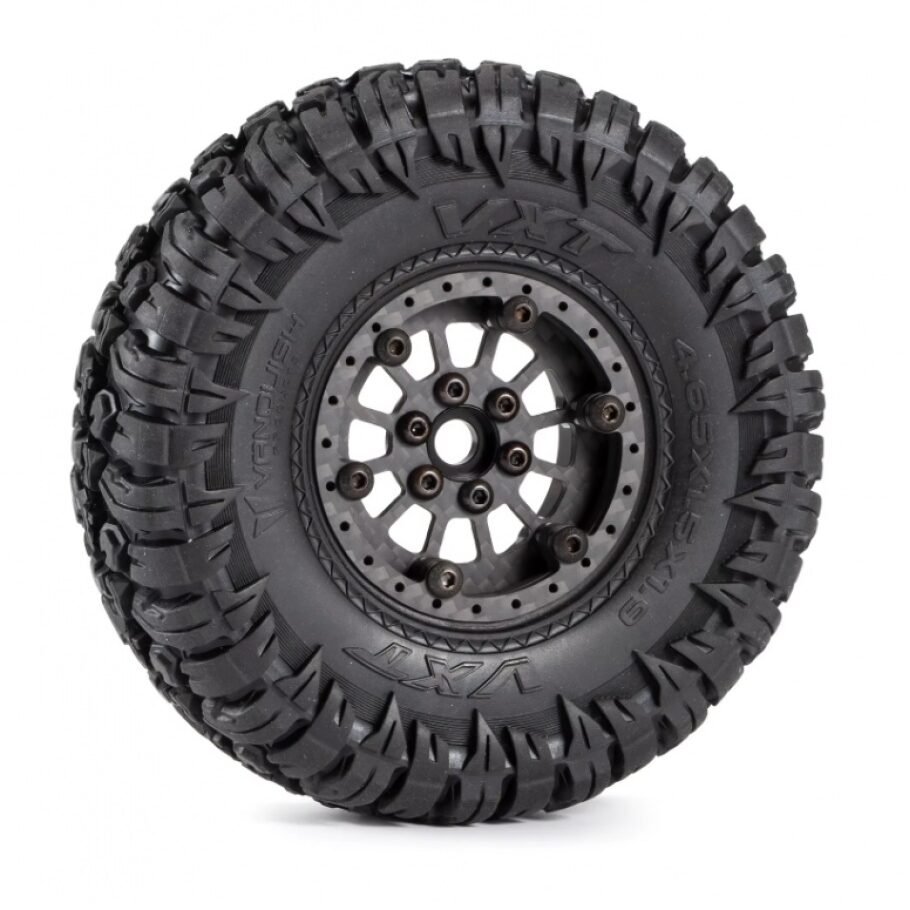

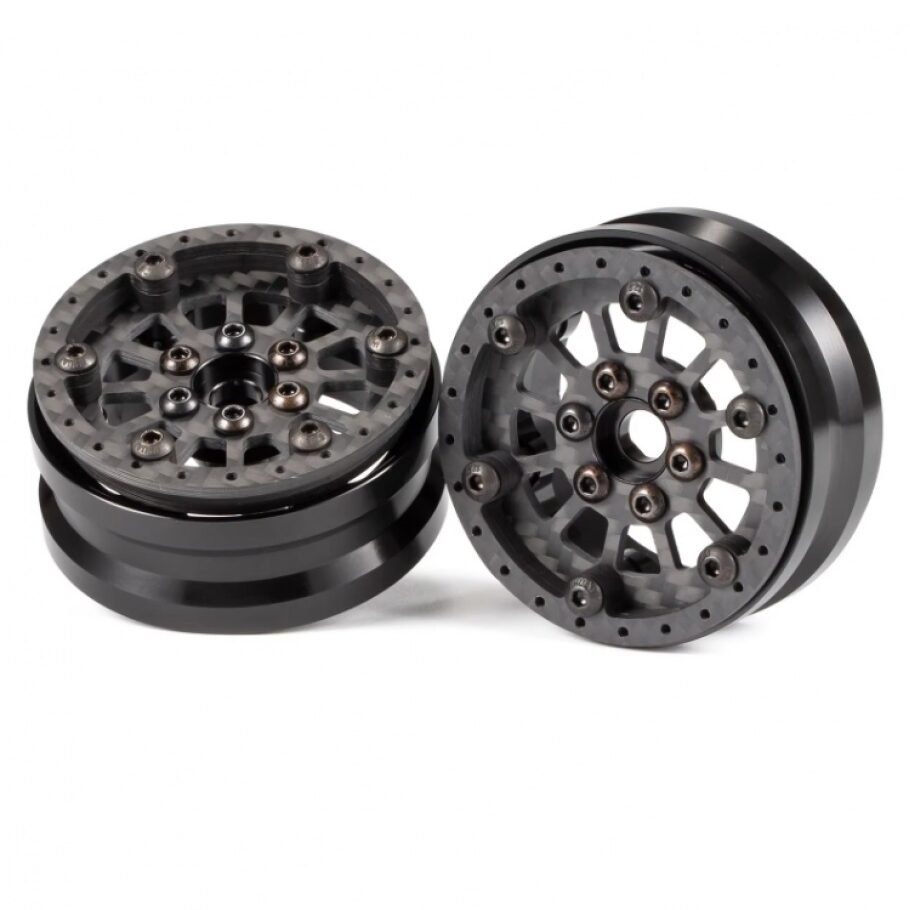

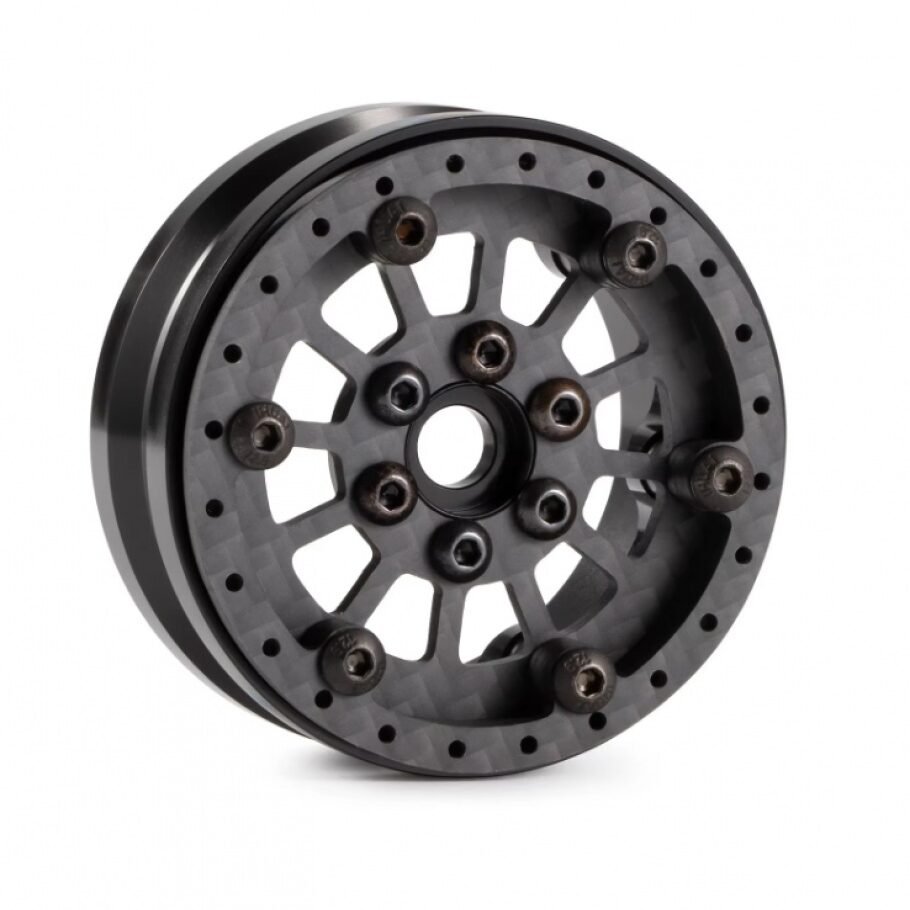

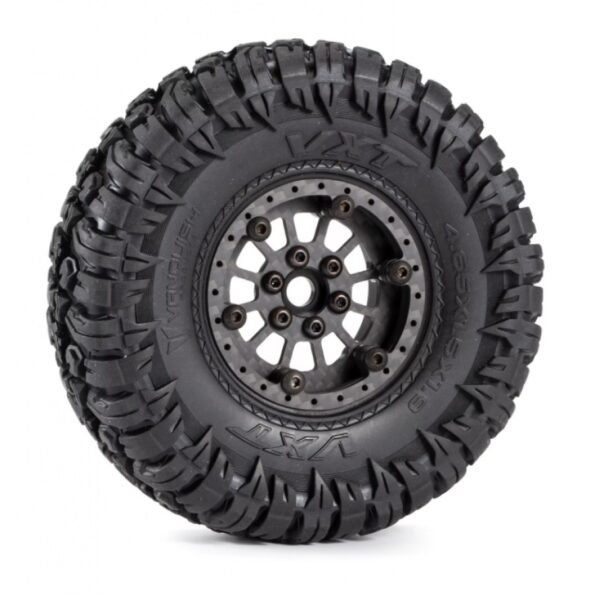

Ultra Lightweight Carbon Aluminum 1.9 Beadlock Wheels Adjustable Offset

• Ultra-lightweight wheel consisting of carbon disc and aluminum inner, available in 3 disc design types.

• Machined carbon fiber wheel face.

• CNC machined aluminum clamp ring, rear lock ring and hub, black anodizing.

• Grade 12.9 Steel Hardware.

• High clearance inner wheel opening.

• Compatible with portal axles.

• The offset (inset) can be easily changed by combining the bead ring spacer installation position and the hub spacer.

Material:

Carbon Fiber: Wheel Face, Bead Ring, Bead Ring Spacers, Hub Spacers

Aluminum: Clamp Ring, Rear Lock Ring, Wheel Hub

POM: Spacers

Steel: Hardware

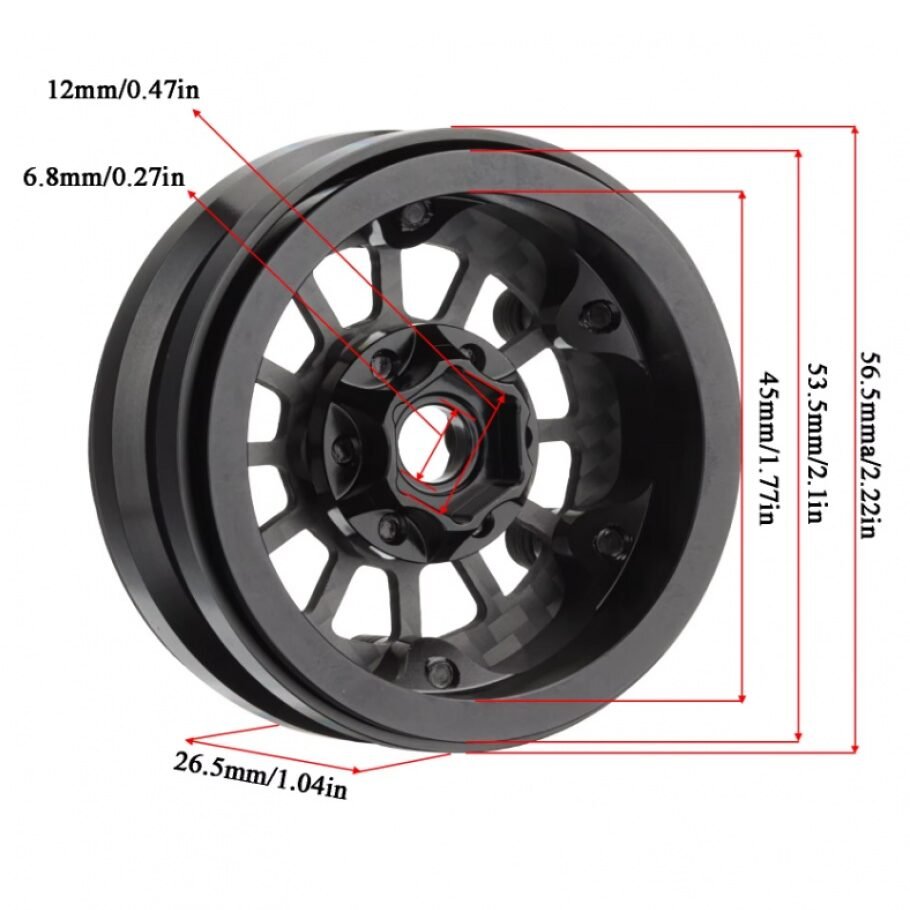

Specifications:

Size: 1.9 Inch

Clamp Ring Diameter: 56.5mm(2.22in)

Beadlock Ring Diameter: 53.5mm(2.11in)

Rear Lock Ring Inside Diameter: 45mm(1.77in)

Width: 26.5mm(1.04in)

Center Hole: 6.8mm(0.27in)

12mm Standard Hex

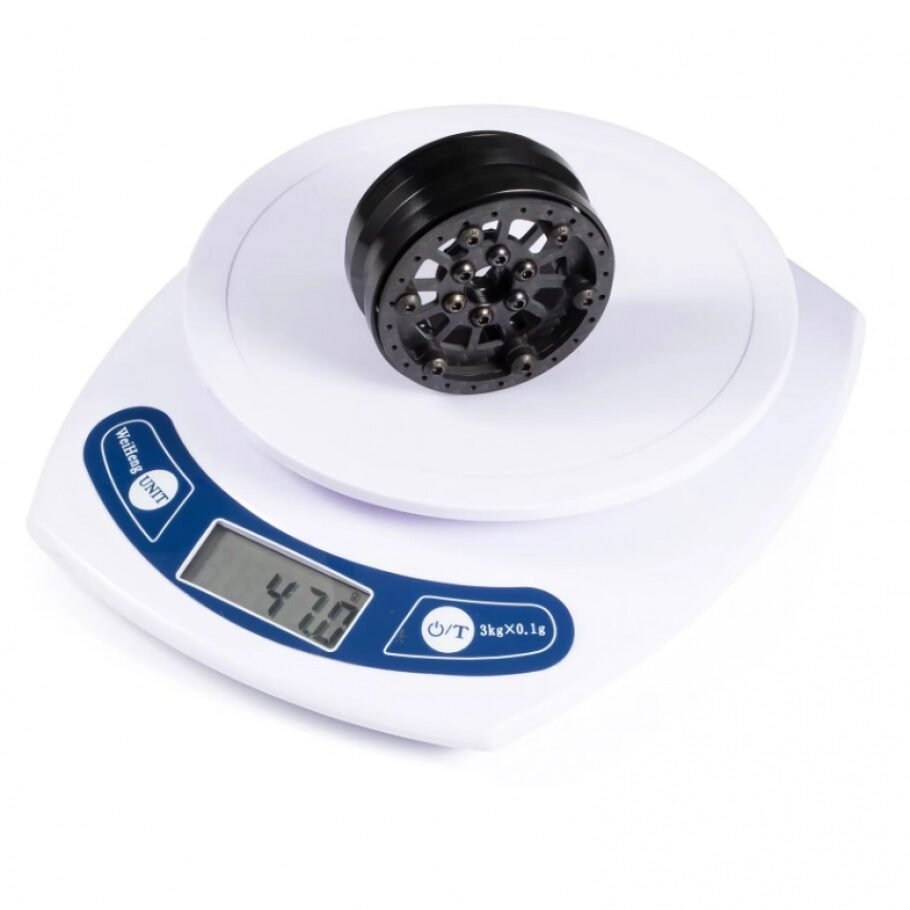

Weight:

Type A: 47g Each

Type B: 47g Each

Type C: 50g Each

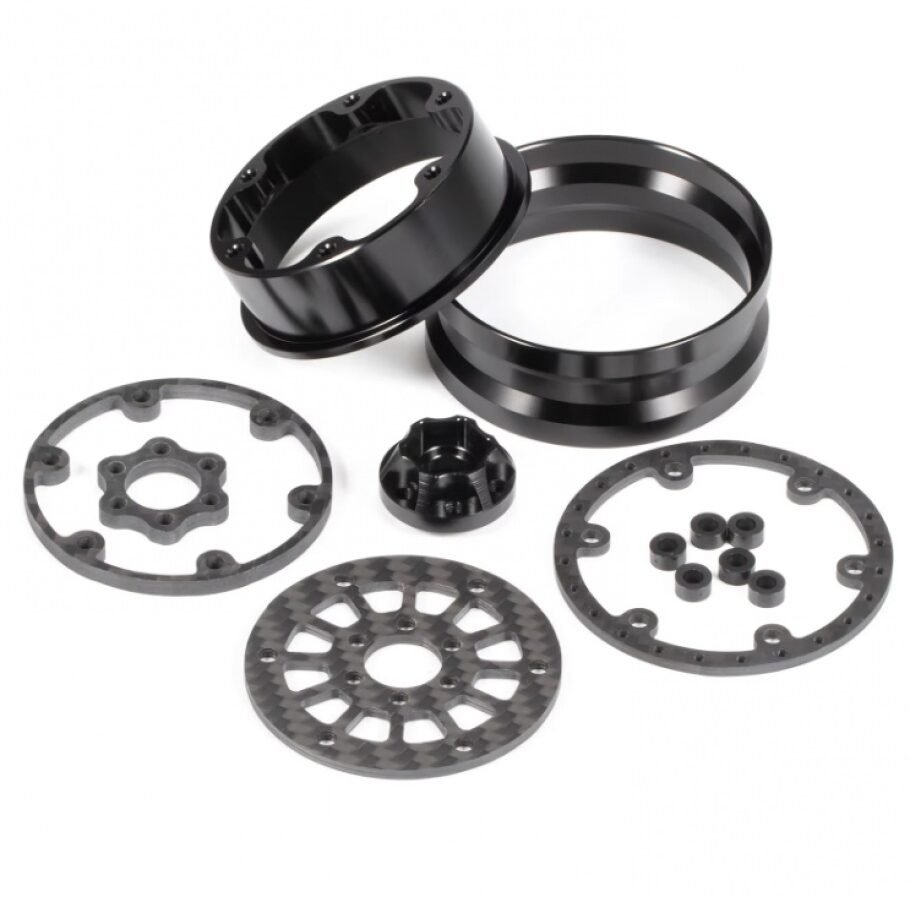

Package Includes:

4x 2mm Thick Carbon Wheel Face

4x 2mm Thick Carbon Beadlock Ring

4x 3mm Thick Carbon Bead Ring Spacers

4x 3mm Thick Carbon Hub Spacers

4x Aluminum Clamp Ring

4x Aluminum Rear Lock Ring

4x Aluminum Wheel Hub

24x POM Spacers

24x M3*16mm Button Head Screws

24x M3*8mm Button Head Screws

24x M3*6mm Button Head Screws

Notes:

1. The other products in the picture are for display only and are not included.

2. Any questions, please do not hesitate to contact our store. Honored to serve you.
