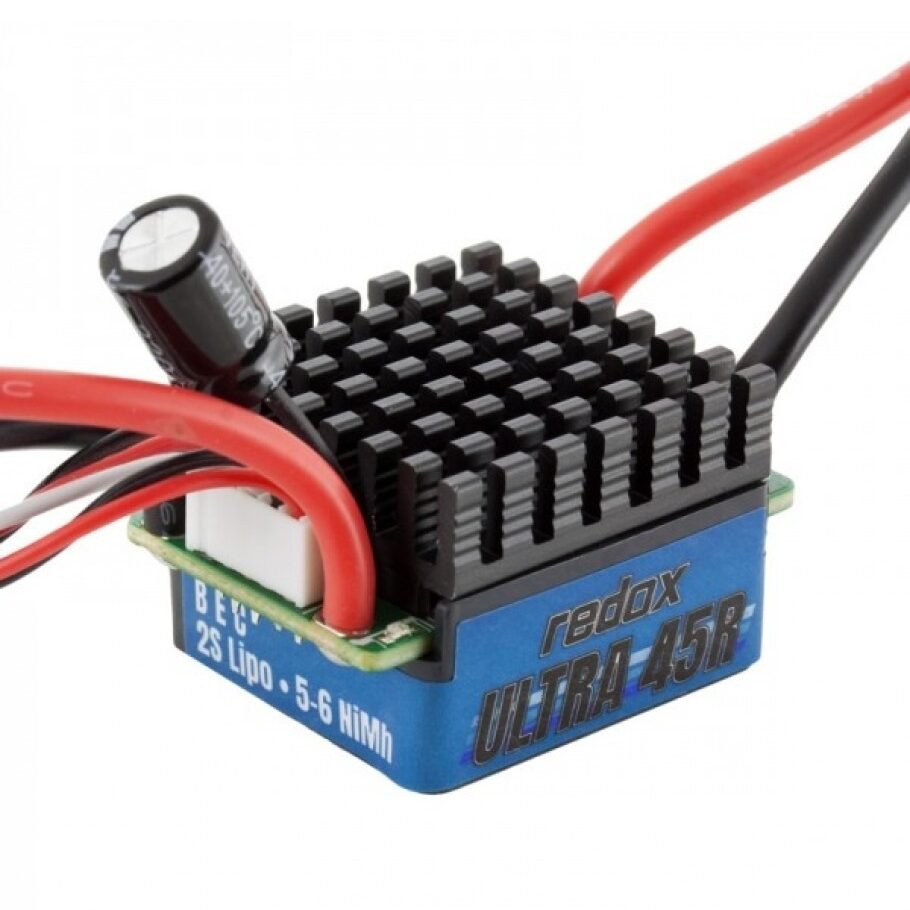

ULTRA 45R ESC for brush motors – Redox

ULTRA 45R brushed ESC for brushed motors, manufactured by REDOX.

Designed for 400, 500, 600 class motors, suitable for cars and boats.

Main features:

Electronic, 2-way, proportional current ESC for brushed motors class 400, 500, 600.

Brake mode and reverse mode (passive brake, active brake)

Low voltage protection and MOFST overheat protection

Factory installed Quick-Start Program (start without wheel spin)

Stable at low speed

Linear gas curve – immediate response to acceleration

Technical data:

Weight: 38 g

Supply voltage: 2s LiPo (7.4 V) or 5-6s NiXX (6.0 – 7.2 V)

Continuous current: 45 A

BEC: linear, 5.6 V / 2 A

Engine winding limits: 10T / <30000 RPM

Attention! ESC is NOT waterproof. In case of installing the ESC on the boat, adequate moisture protection and level of cooling must be self-installed.
