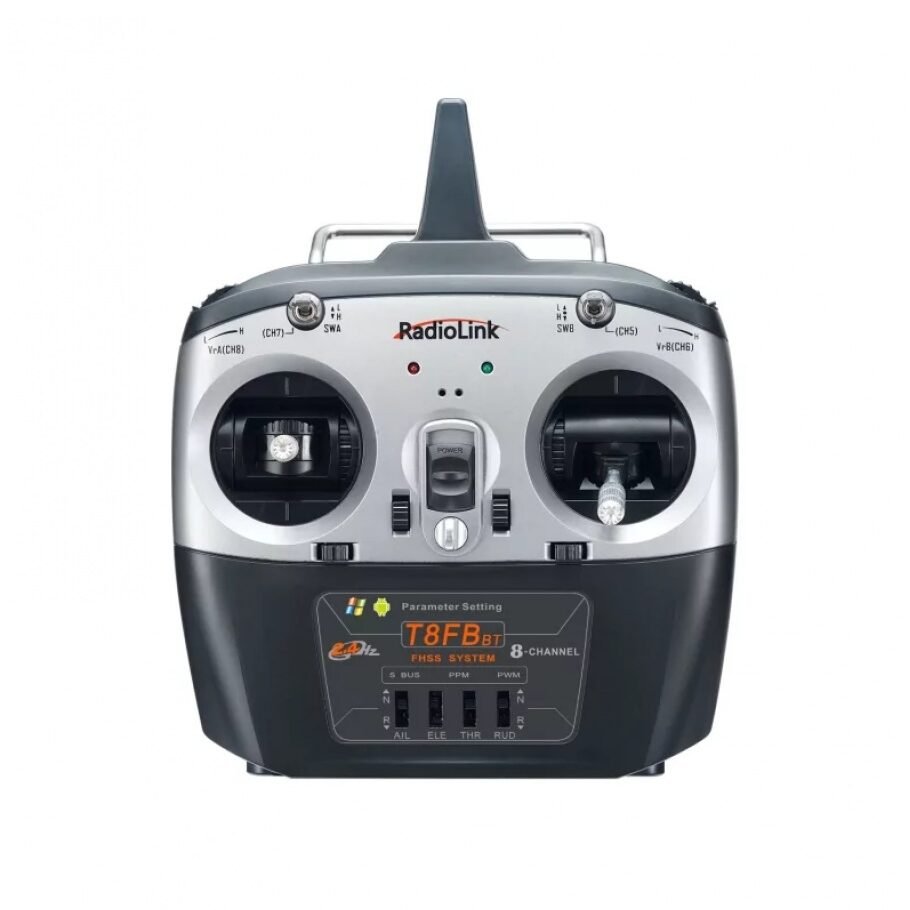

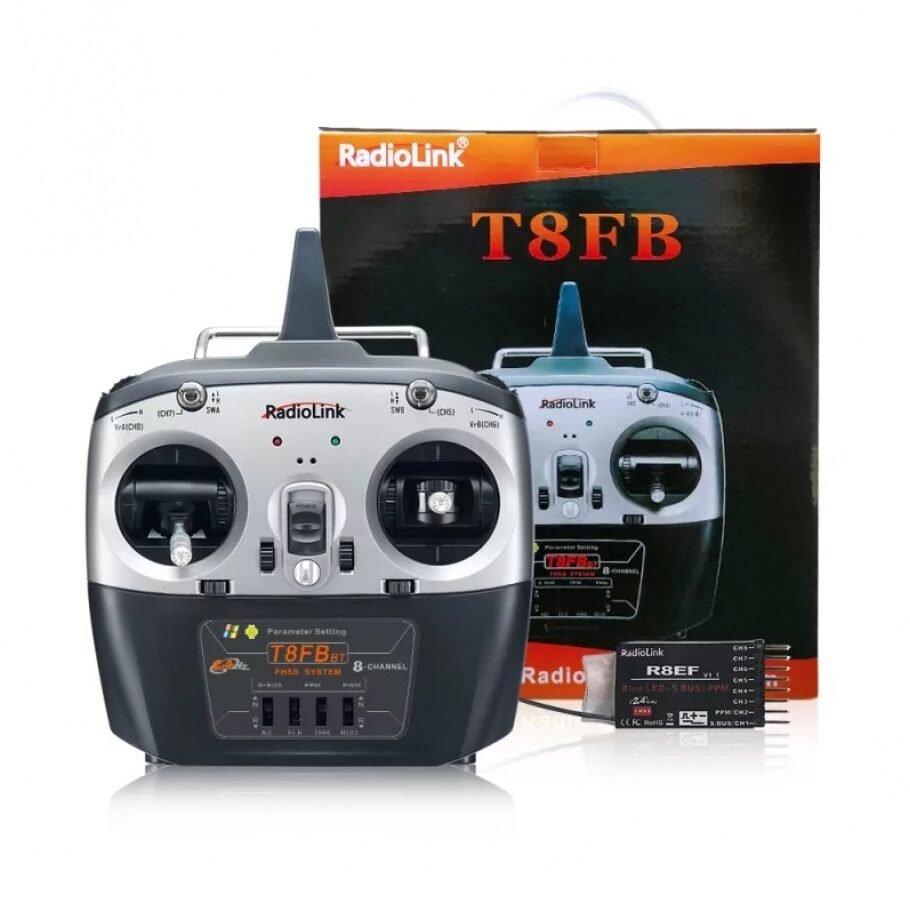

RADIO RADIOLINK 8 WAYS T8FB BT+R8EF

Fiche RadioLink T8FB

Easy to use – a great starter product!

Possible range up to 2 km

The T8FB (BT) has the same FHSS algorithm as the AT9S Pro with a sequence jump of 67 channels.

The TI CC2500 processor and its transmission rate (three times faster than the Open TX) enables excellent anti-interference capability both on the same and on different frequency bands.

The range of the T8FB is possible up to 2 km (in the air).

PRECISION HANDLES 0.5 us

The new circuit minimizes parasitic micro oscillations of the servos (jitter).

Optimal PCB design and high quality potentiometers provide high stability of the output signal. The maximum PWM is 1.84 us with an average of only 0.5 us which is essential to ensure high precision flights.

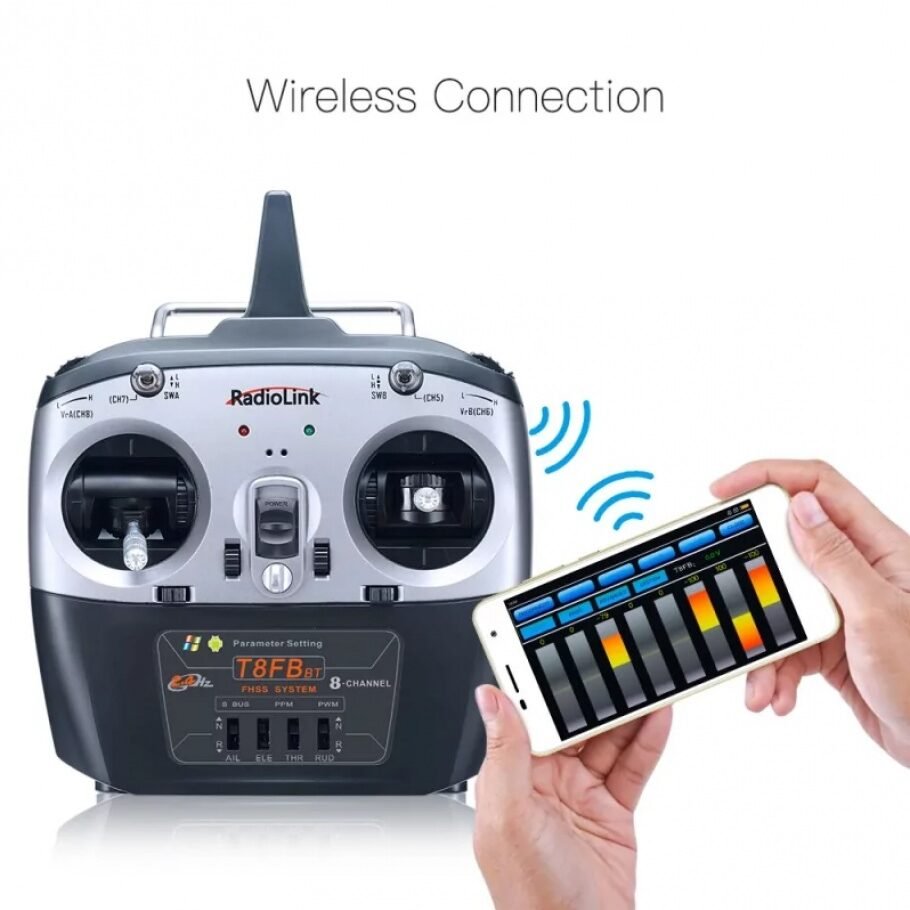

USB update – configuration via Bluetooth

Settings can be easily configured and changed with the mobile app for Android or iOS via Bluetooth connection. It is also possible to configure the transmitter and perform updates on a PC via a USB cable.

Integrated real-time telemetry

Real-time model data retrieval function allows users to know transmitter voltage and RSSI information.

When paired with the R8FG, R8F or R7FG receiver, the model voltage will show on the phone app.

Programmable mixes

Channels 5 to 8 can be programmed freely.

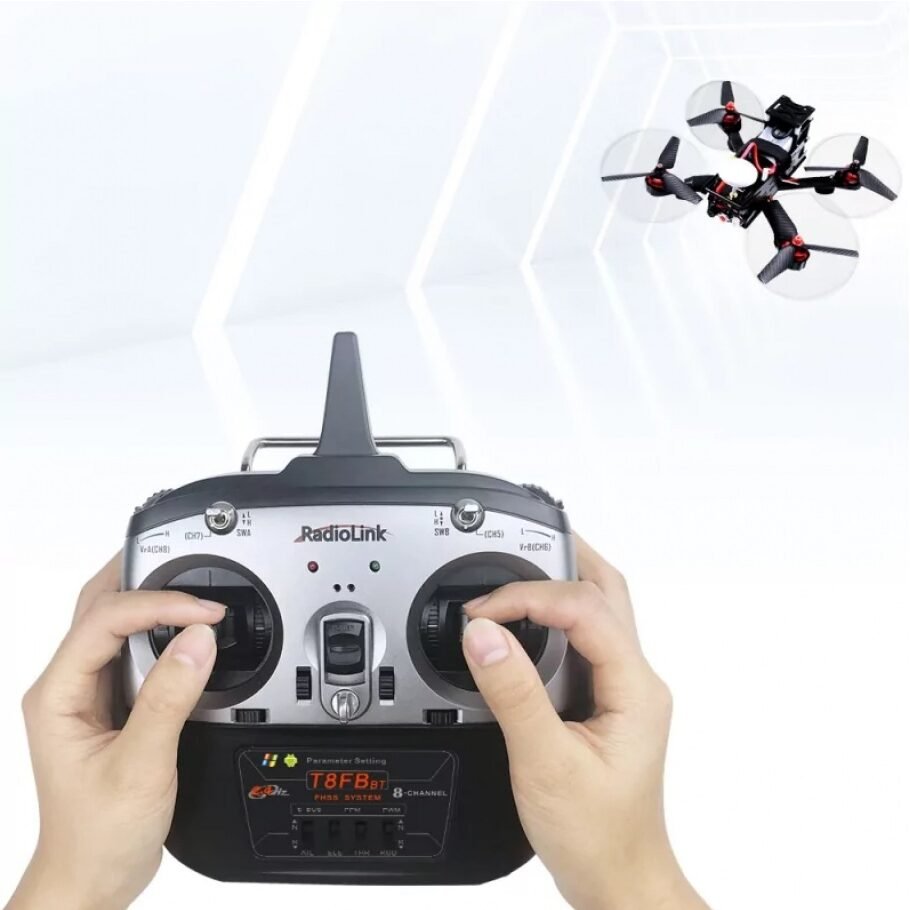

Flight modes default to the two 3-position switches on the PIX flight controller.

Beginners can easily enjoy the T8FB intuitively.

Compatible with multiple receivers

SBUS/PPM/PWM is supported by this transmitter.

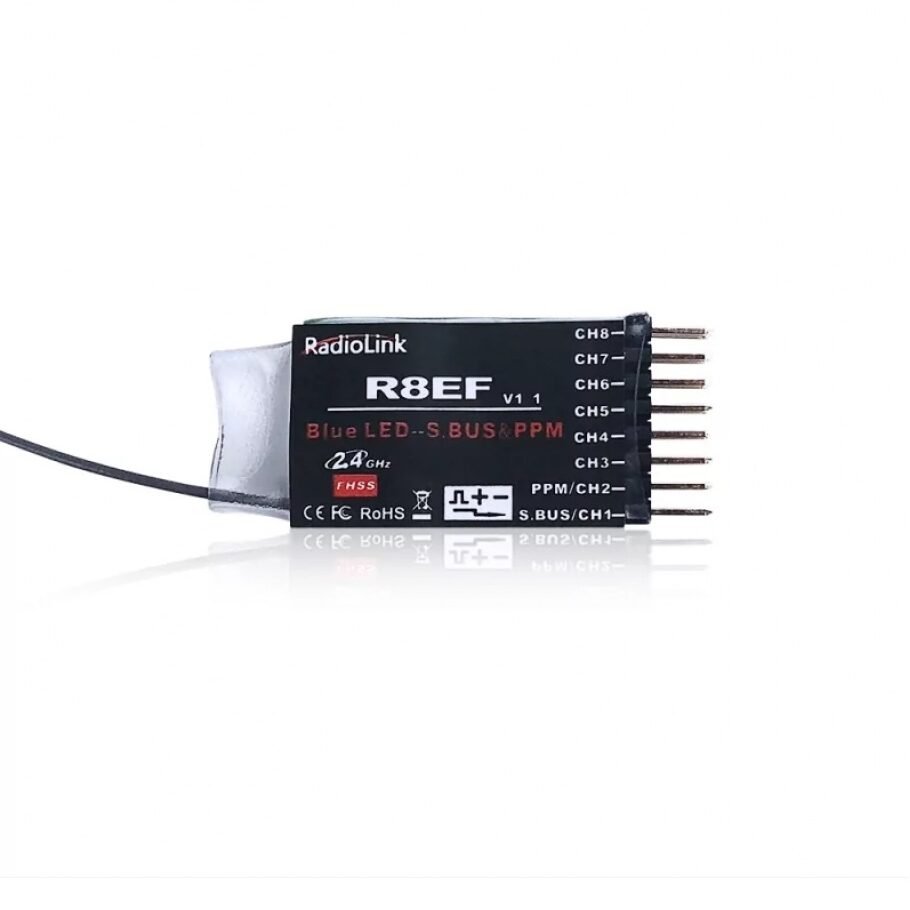

The standard R8EF receiver supplied with the remote control supports the output of SBUS, PPM and PWM signals. There is no need to use additional cables or a signal converter, which reduces the weight of the aircraft.

When outputting SBUS and PPM signals, channels 3-8 can also output corresponding PWM signal at the same time, and work with T8S switch to control PTZ and landing gear.

Reverse polarity protection

RadioLink’s voltage protection technology helps protect the transmitter and receiver against reverse polarity when plugged in.

Low battery consumption

The switch-mode power supply (SMPS) keeps the T8FB operating current below 80mA.

With a 3S 1800mAh LiPo battery, the battery life is over 20 hours.

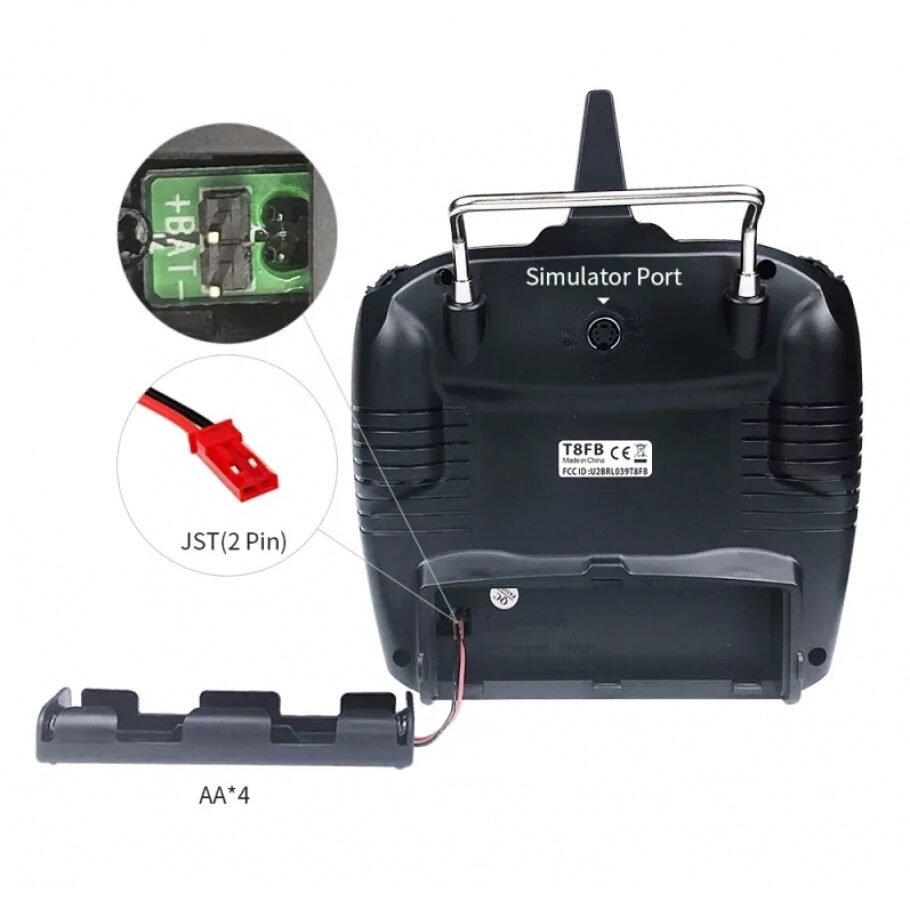

The universal JST connector makes it easy to adapt to different battery configurations: 4 AA batteries, LiPo battery (2S-4S) or an 18650 Lithium battery.

If you want to use a lithium battery, please make sure the battery has a JST connector and the dimension of this battery is 115 x 35.5 x 24 mm.

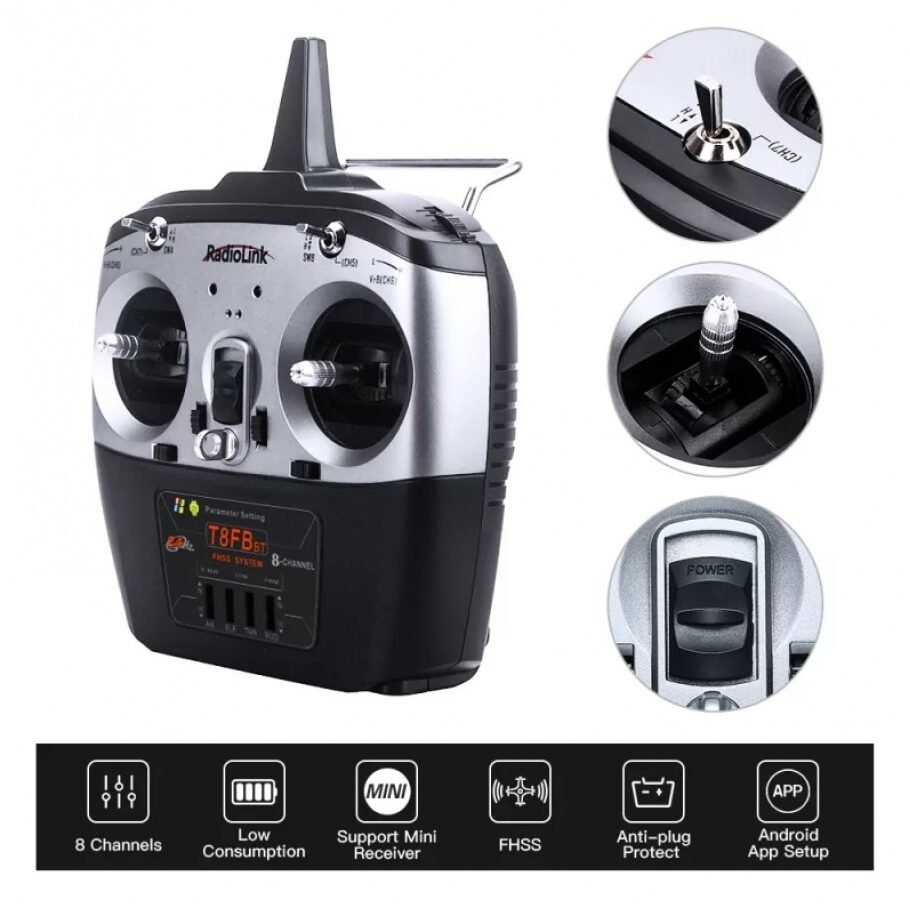

FEATURES

Sub-trim adjustment

Limit switch adjustment

Reversing servos

Failsafe setting

Dual-Rate setting

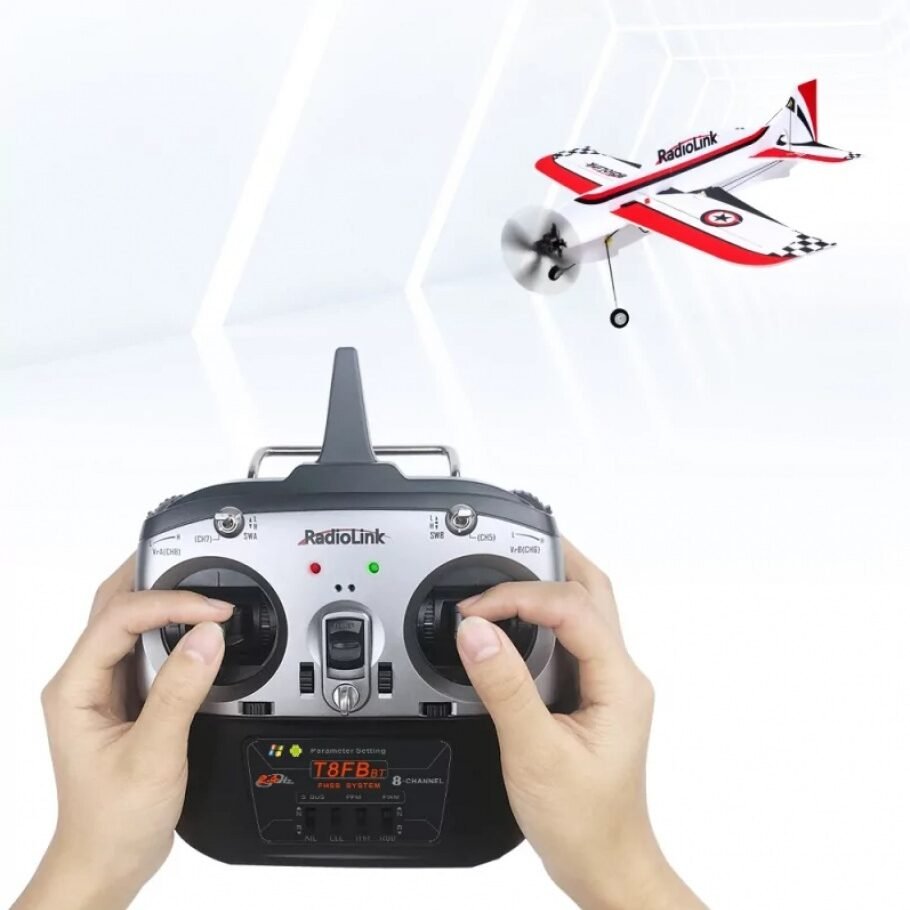

Airplanes: Delta wing and V-tail

Adjustable curves up to 7 points
