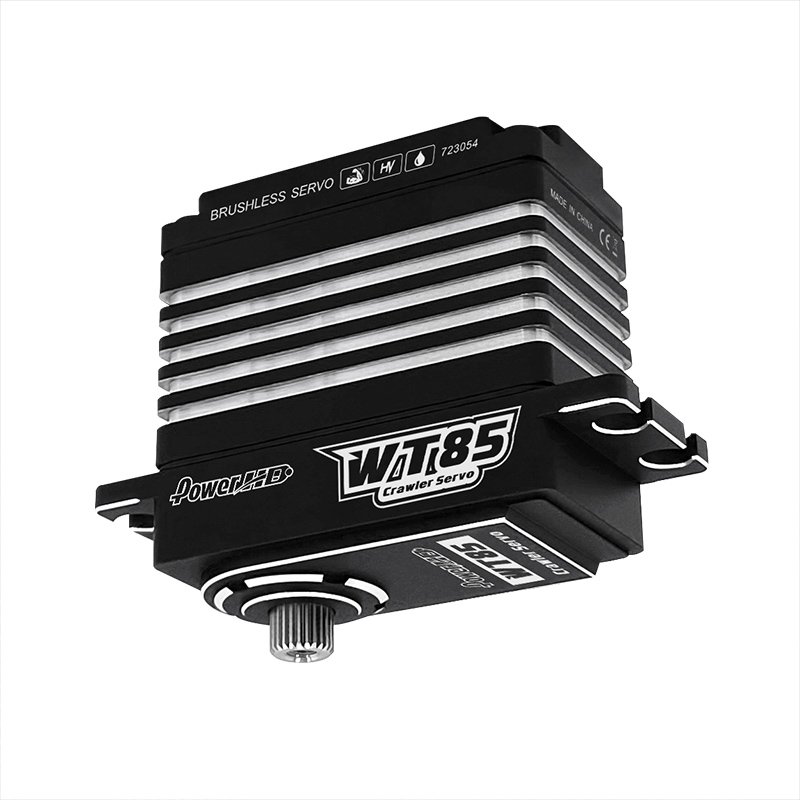

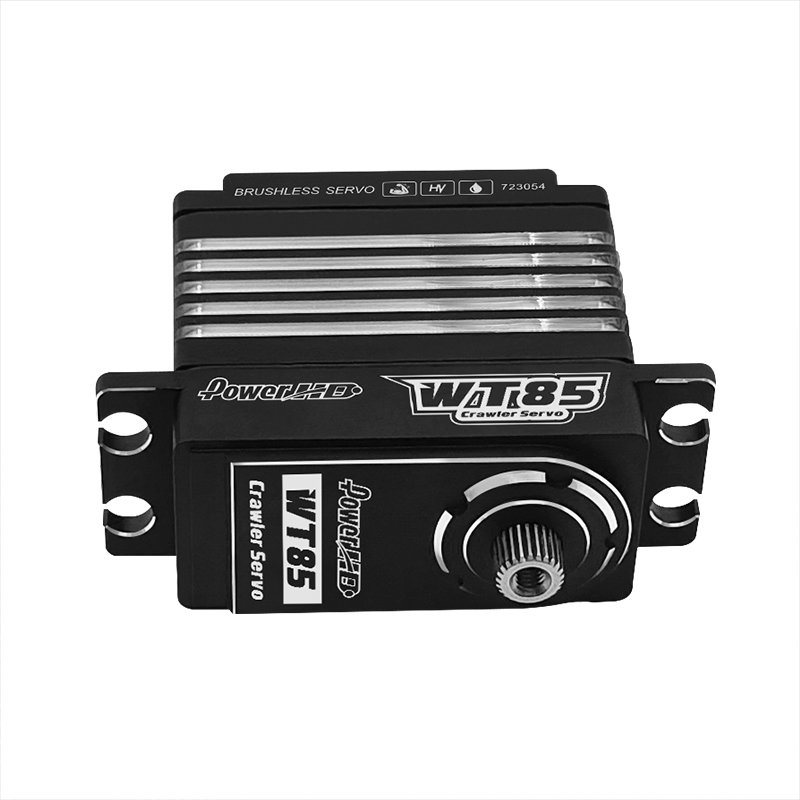

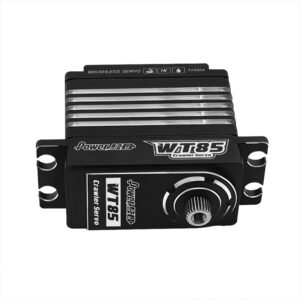

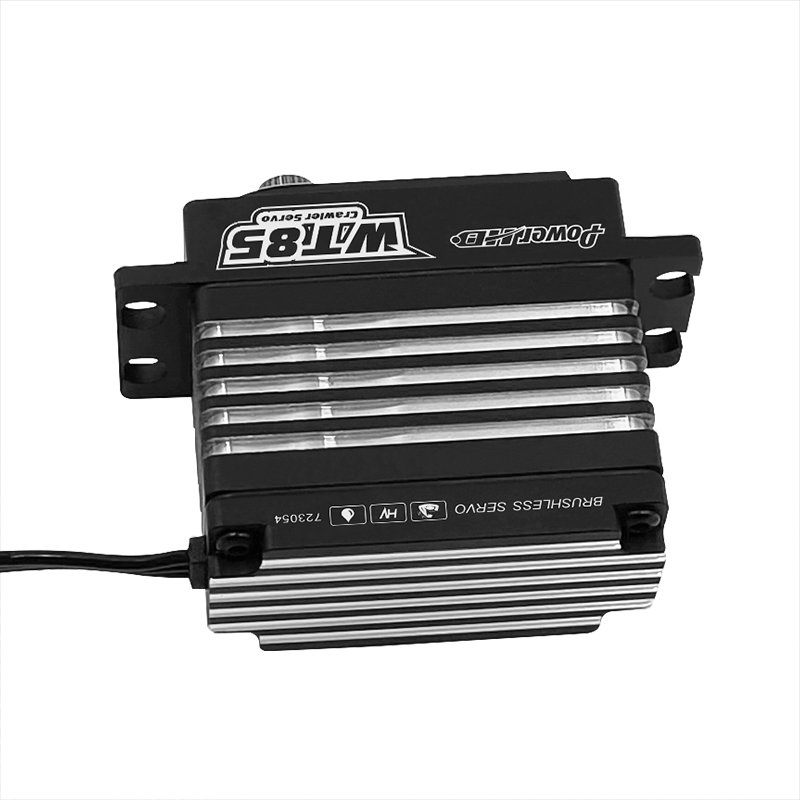

PowerHD WT85 HV Brushless Digital Servo 70.0KG/0.10sec@8,4V

WT80 and WT85 use aluminum heat sink case, on various crawler frames they have strong torque and speed with excellent performance.

The WT series servos are all made of steel gears, IP67 waterproof, durable, and can be used in various environments; they are perfectly suited for 1/10 and 1/8 Rock-Crawlers and Competition Crawlers.



Torque(6.0V): 55.0 kg-cm / (763.8 oz/in)
Torque(7.4V): 60.0 kg-cm / (833.2 oz/in)
Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
Speed: 0.15 sec (6.0V) 0.12 sec (7.4V)
Speed: 0.10 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 85 g (2.99 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: Steel
Operating Temperature: -10 ~60C
Working frequency: 1520 s / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
