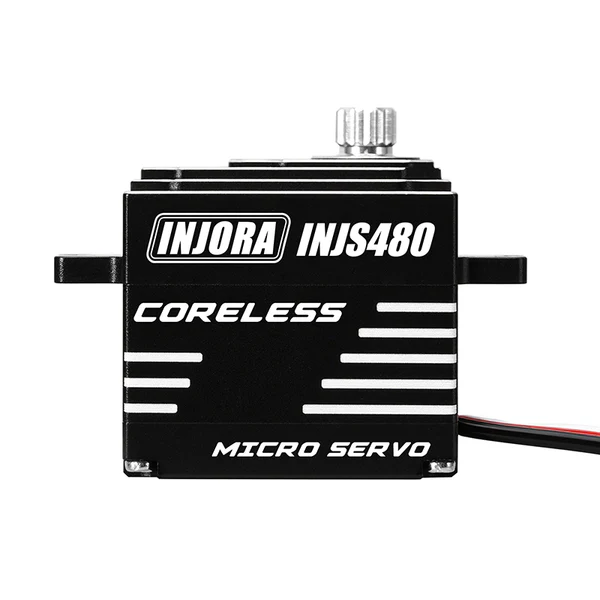

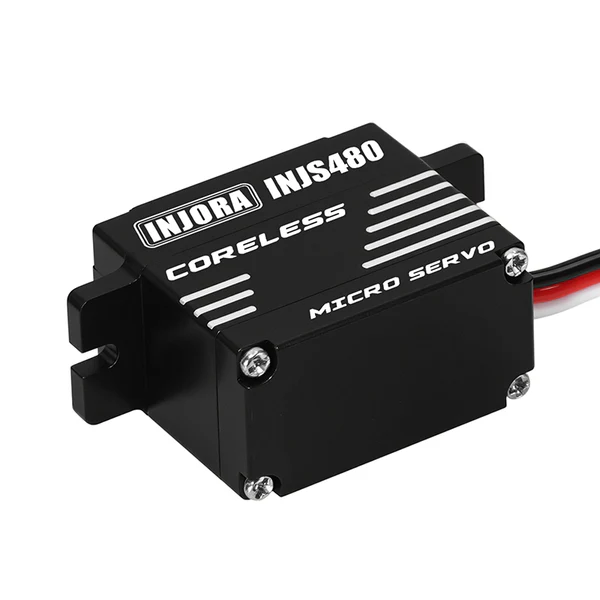

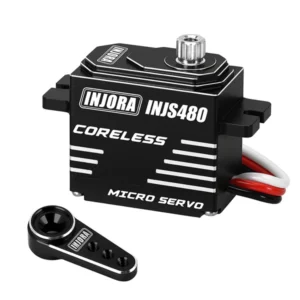

INJORA INJS480 Coreless Micro Servo with Mount & Horn for 1/24 Axial SCX24

INJORA INJS480 Coreless Micro Servo with Servo Horn for 1/24 Axial SCX24

Features:

All-Aluminum Case – Strong, durable housing with excellent heat dissipation
Coreless Motor – Delivers faster response, smoother operation, and long-lasting reliability
High Performance – Higher speed and torque for stronger, more precise steering

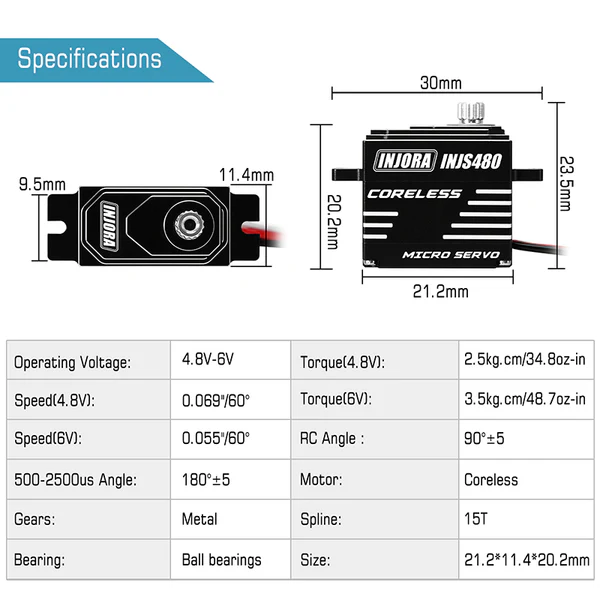

Servo Specifications:

Part Number: INJS480
Operating Voltage: 4.8V-6V
Torque(4.8V): 2.5kg.cm
Speed(4.8V): 0.069″/60°
Torque(6V): 3.5kg.cm
Speed(6V): 0.055″/60°
RC Angle: 90°±5
500-2500μs Angle: 180°± 5
Motor: Coreless
Gears: Metal
Spline: Φ3.9 15T
Bearing: Ball bearings
Size: 21.2*11.4*20.2mm
Weight: 9.8g
Perfect fit for stock SCX24 servo mount and Emax ES08MA II mount
Servo Mount Specifications:

Material: Aluminum
Weight: 4g (0.14oz)
Mountable with Y links or two piece of the upper links
Side post can be adjusted from front to back for larger servo clearance
Also compatible with stock SCX24 servo and Emax ES08MA II Servo
