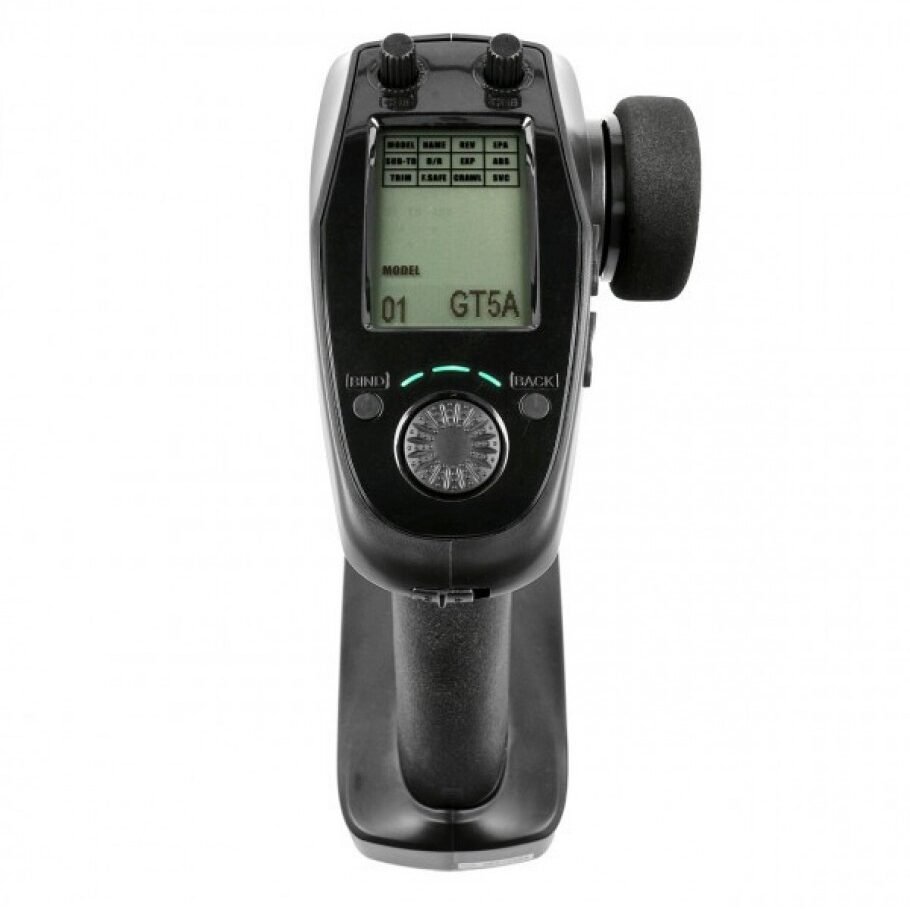

Flysky FS-GT5 6 channel AFHDS Radio Set with FS-BS6 Receiver

The GT5 transmitter from FlySky is a modern 6-channel transmitter and was developed specifically for car and boat hobbyists. With the advanced AFHDS 2A protocol, this transmitter offers excellent control and precision. This is possible due to the included gyro receiver. A variety of functions such as the four optional crawler modes, SVC functionality and haptic feedback ensure an intensive and intuitive experience while driving. The design of this transmitter fits snugly in the driver’s hands and includes a bearing steering wheel for smooth operation and a foldable antenna for optimal convenience. The slim GT5 transmitter is powered by either AA batteries or a 2S lithium battery for extended use.

Features:

AFHDS 2A

6 Channels

Steering wheel with bearing

Foldable antenna

Incl. different crawler modes

Gyro receiver

Multi-channel hopping frequency

Multidirectional antenna with amplification

Unique ID recognition system

Low energy consumption

Technical Specifications:

Transmitter

Type: 2.408 – 2.475GHz

Frequency Protocol: AFHDS 2A and AFHDS

Channels: 6

RC Models: Cars, Boats

Distance: > 200m (Ground)

Channel Resolution: 4096

Battery: 4x 1.5V AA

Low Voltage Warning: AA batteries: <4.4V

2S LiPo: <7.4V

Antenna Type: External single antenna

Display: NTN semi permeable segment screen

52.5 x 35mm VA LCD (with white backlight)

Charging Interface: –

Data Interface: –

Temperature Range: -10°C to +60°C

Humidity Range: 20% to 95%

Online Update: No

Dimensions:

158x95x243mm

Weight: 296g

Receiver FS-A3

Channels: 6

Type: 2.408 – 2.475GHz

Frequency Protocol: AFHDS 2A

Suited Transmitter: All transmitter with AFHDS 2A support

Antenna Type: Single

Voltage:

4-8.4V DC

Data Interface: PWM

RSSI: Yes

Temperature Range: -10°C to +60°C

Humidity Range: 20% to 95%

Online Update: Yes

Dimensions: 18x22x16.2mm

Weight: 7.6g

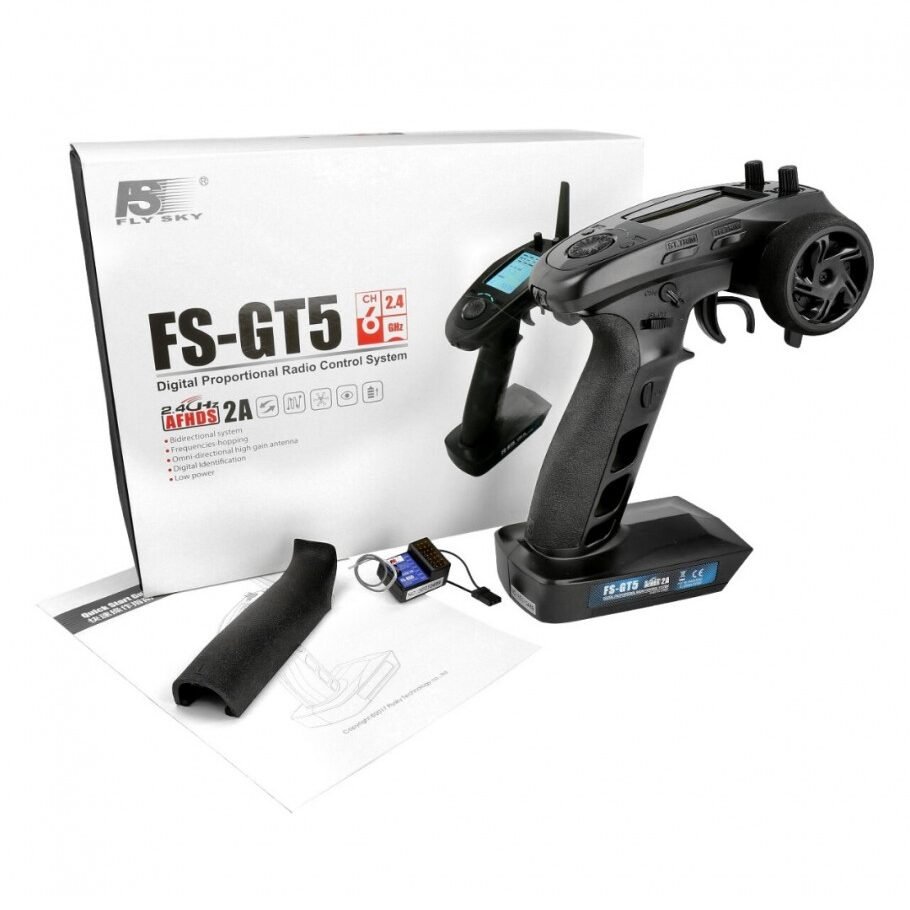

Delivery:

FlySky GT5 transmitter

1x receiver: FS-BS6

Manuals
