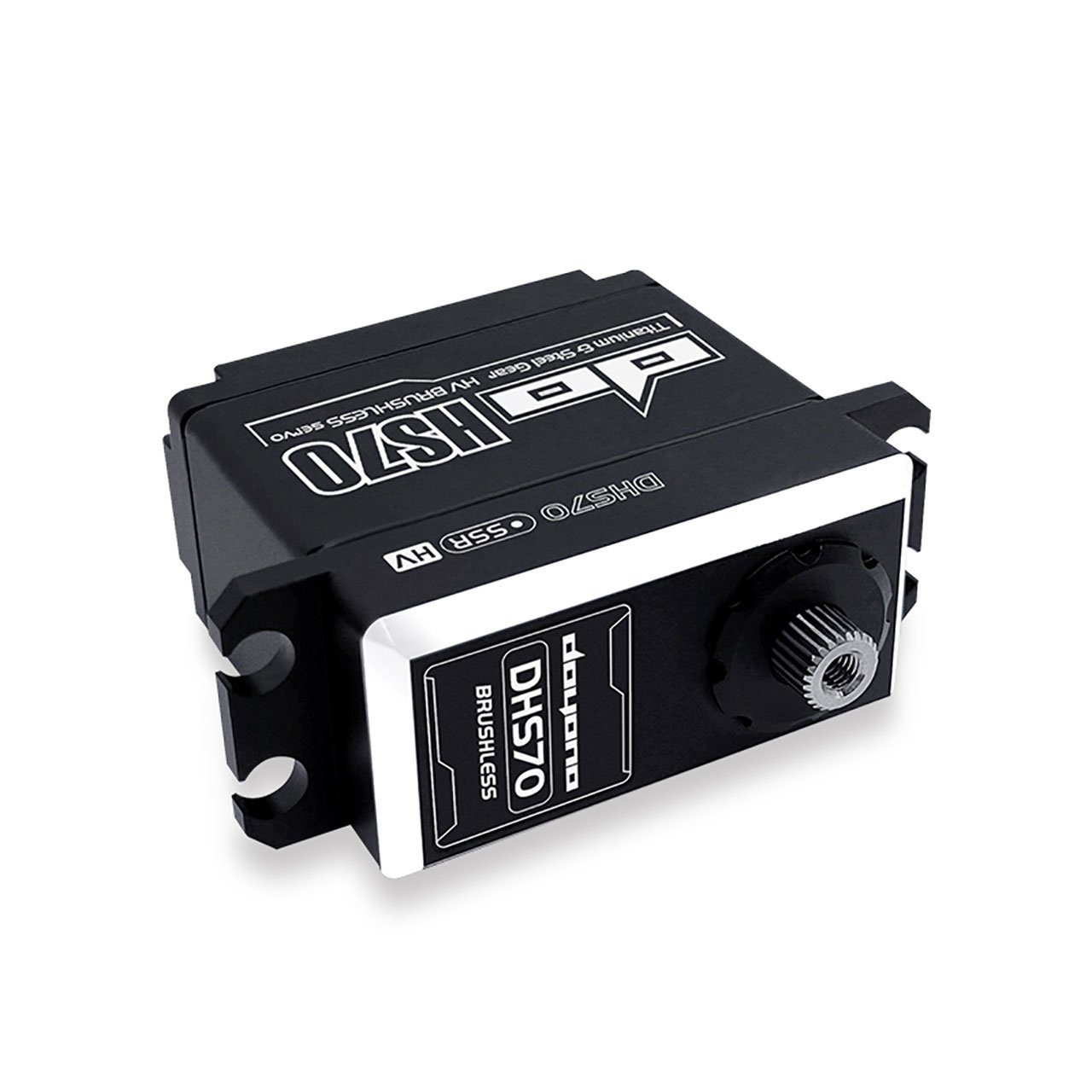

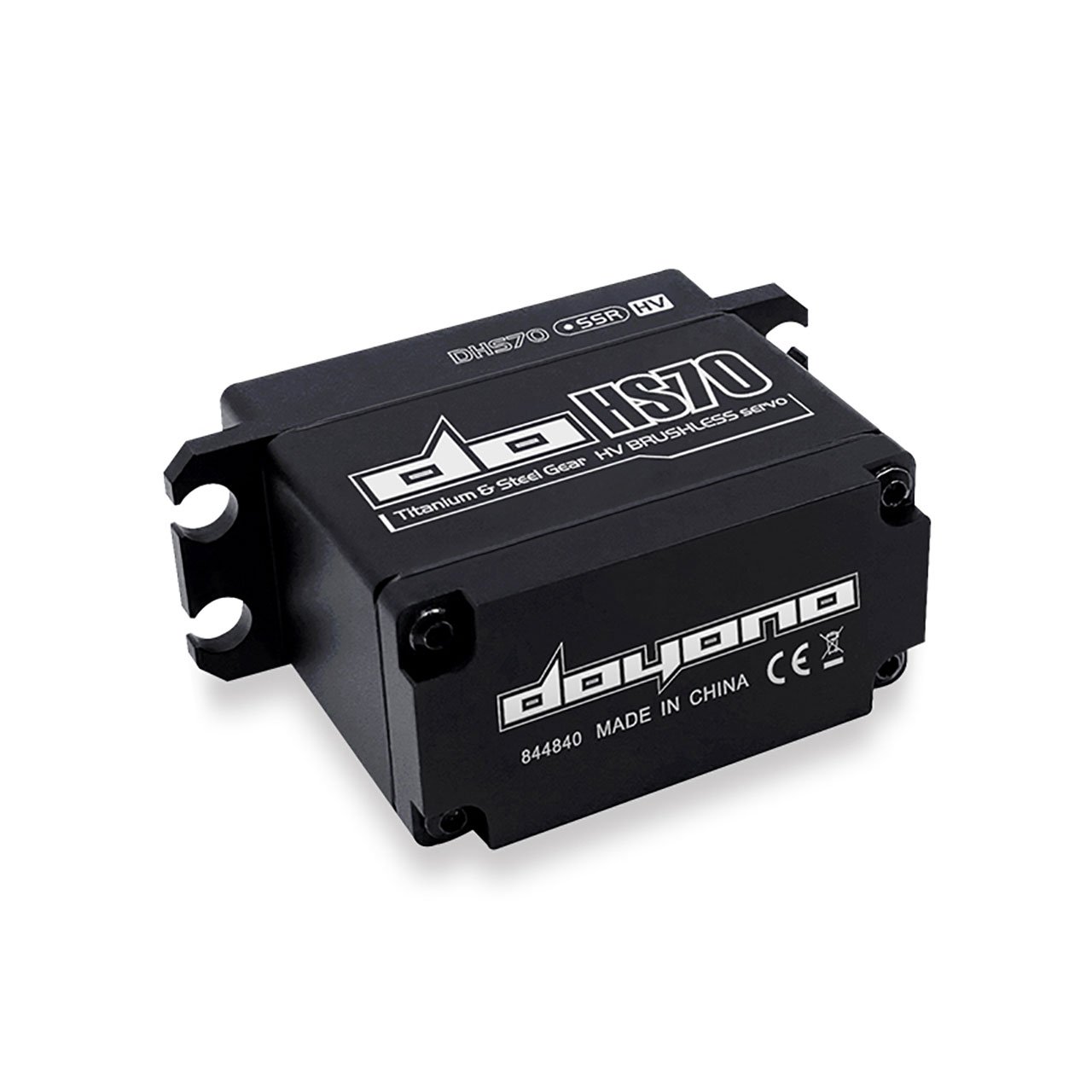

Doyono Brushless Servo HV CNC aluminium case 70.0kg/0.125sec @8.4V

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 70kgcm and brushless motor has a titanium steel gear and an aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

Features:

High Voltage Servo
Gears made of durable titanium and steel
Lightweight aluminum housing
Operating Voltage: 6.0-8.4V
2µs dead band, 1520µs neutral point
180mm connection wire length
Technical Specifications:

Voltage: 6.0V 8.4V
Speed: 0.165sec 0.125sec
Torque: 56.0kgcm 70.0kgcm
Motor: Brushless
Gear: Titanium / Steel
Bearing: yes, dual
Max. Travel: ~120° (bei 800: 2200µs)
Quiescent Current: 60mA @6.0V
Rated Current: 0.2A @6.0V
Blocking Current: 3.8A @6.0V
Dimensions: 40.7×20.5×38.9mm
Weight: 84.0g
Output Gear: 25T
Application: 1/5 and 1/8 Off-Road
