INJS2065 PRO 9KG High Voltage Waterproof Metal Gear 2065 Digital Micro Servo

INJORA INJS2065 PRO 9KG High Voltage Waterproof Metal Gear 2065 Digital Micro Servo

Note: Not compatible with the TRX-4 as a shift servo.

Features:

High-torque digital servo with high-voltage support
Fast response with smooth and precise operation

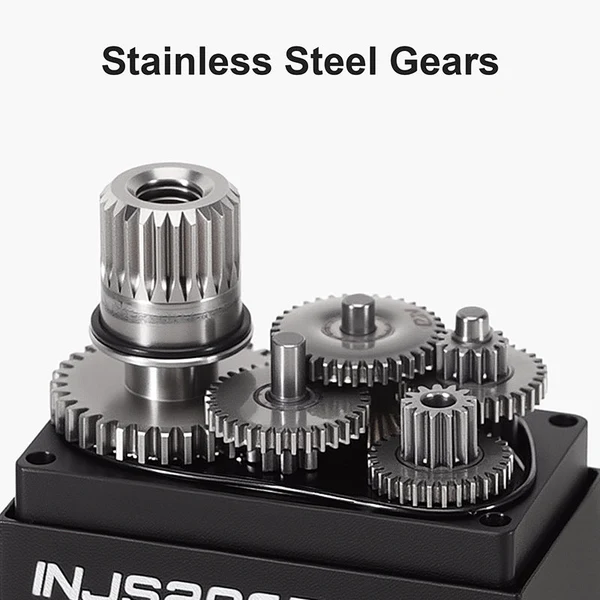

Stainless steel internal gears enhance strength and durability

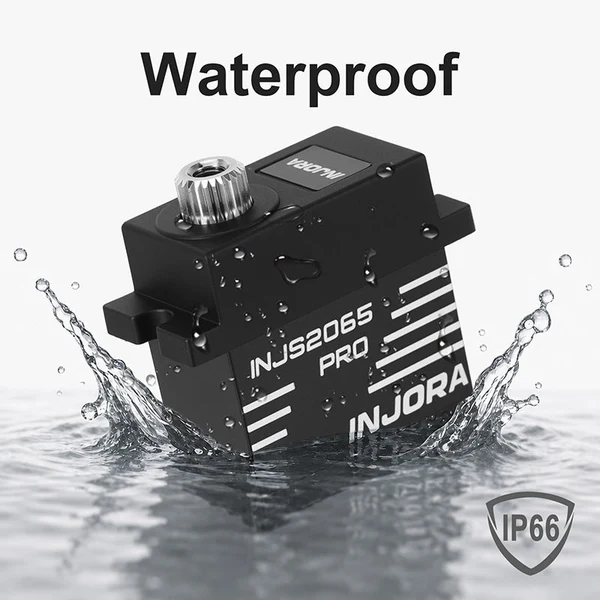

Waterproof design for reliable performance in wet conditions

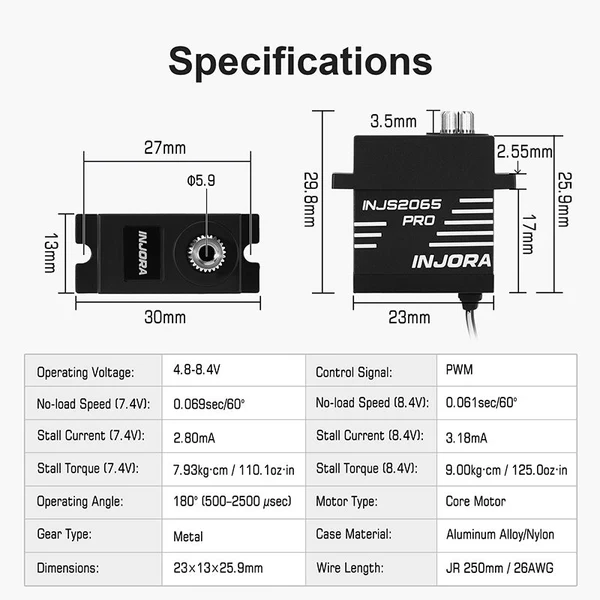

Specifications:

Part Number: INJS2065 PRO
Case Material: Aluminum Alloy, Nylon
Motor: Core Motor
Voltage Range: 4.8–8.4V
Operating Speed (7.4V): 0.069sec/60°
Operating Speed (8.4V): 0.061sec/60°
Stall Torque (7.4V): 7.93kg·cm / 110.1oz·in
Stall Torque (8.4V): 9.00kg·cm / 125.0oz·in
Control Signal: PWM
Operating Angle: 180° (500–2500μs)
Gear Type: Stainless Steel
Spline: Φ5.9 25T
Wire Length: JR 250mm / 26AWG
Dimensions: 23×13×25.9mm

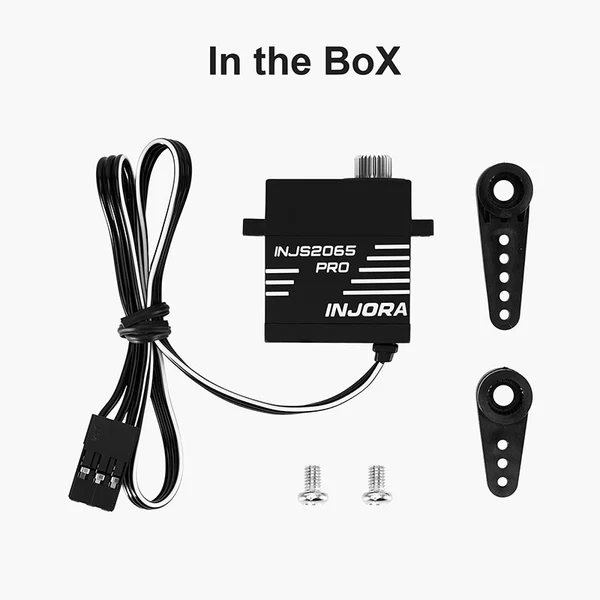

Package List:

1 × INJS2065 PRO Servo
2 × Nylon Servo Horns
